Регулируемый трансформатор питания 220 В DC

220V DC Power Transformer Regulated 30V 5A Laboratory Power Supply

please select the correct input voltage on the back of the DC power supply.

If the wrong input voltage is selected, The machine will be damaged. Description:

This DC Power Supply is a precision DC Switching Power Supply with one output and two displays. The machines have full working protection function with high power, low ripple, high stability, light weight and small volume etc. Current limiting protection can protect KPS power and load from accidental damage. KPS Series power supply with low temperature control circuit and low fan noise.

Mini but professional switching Power supply.

источник питания постоянного тока имеет полную оперативную функцию защиты.

High efficiency, low ripple, small volume, light weight.

двойной светодиодный дисплей для напряжения и тока, высокая точность.

источник питания постоянного тока characterized by Voltage stabilization, current limitation and simple operation.

Double input voltage and convenient choice.

температура управления вентилятором тепловая диссипация, низкий уровень шума.

Dual potentiometer, more accurate setting.

With replaceable fuse, easy replacement of the protective tube.

Used in production line testing, electrical maintenance, aging products, battery charging, laboratories, research and teaching, and all others, requires a DC regulated power supply.

(the power switch is on the back. )

входное напряжение: AC 220V, 50Hz (EU)

Output voltage: 0-30V

output current: 0 ～ 5A

Plug type: EU plug

разрешение напряжения: 0.1 в

текущее разрешение: 0.01 A

Ripple voltage: VPP≤1%

Power Effect: CV≤1% + 10mv

load effect: CV ≤ 1% + 10 мВ

цифровой дисплей: 3 цифры светодиодный дисплей

шум пульсации: ≤1 МВ

Voltage display accuracy: ± 1% + 1 цифра

Current display accuracy: ± 1% + 2 digits

рабочая среда: -10 45 ℃ / 14 ℉ 113 ℉ Rh≤90%

Storage environment: -20 60 ℃ / -4 ℉ 140 ℉ Rh≤80%

Product Size: Approx. 81 * 220 * 165 мм

: 1.7 кг

Package size: approx. 12 * 20.5 * 29 см

1 * KPS305D источник питания постоянного тока

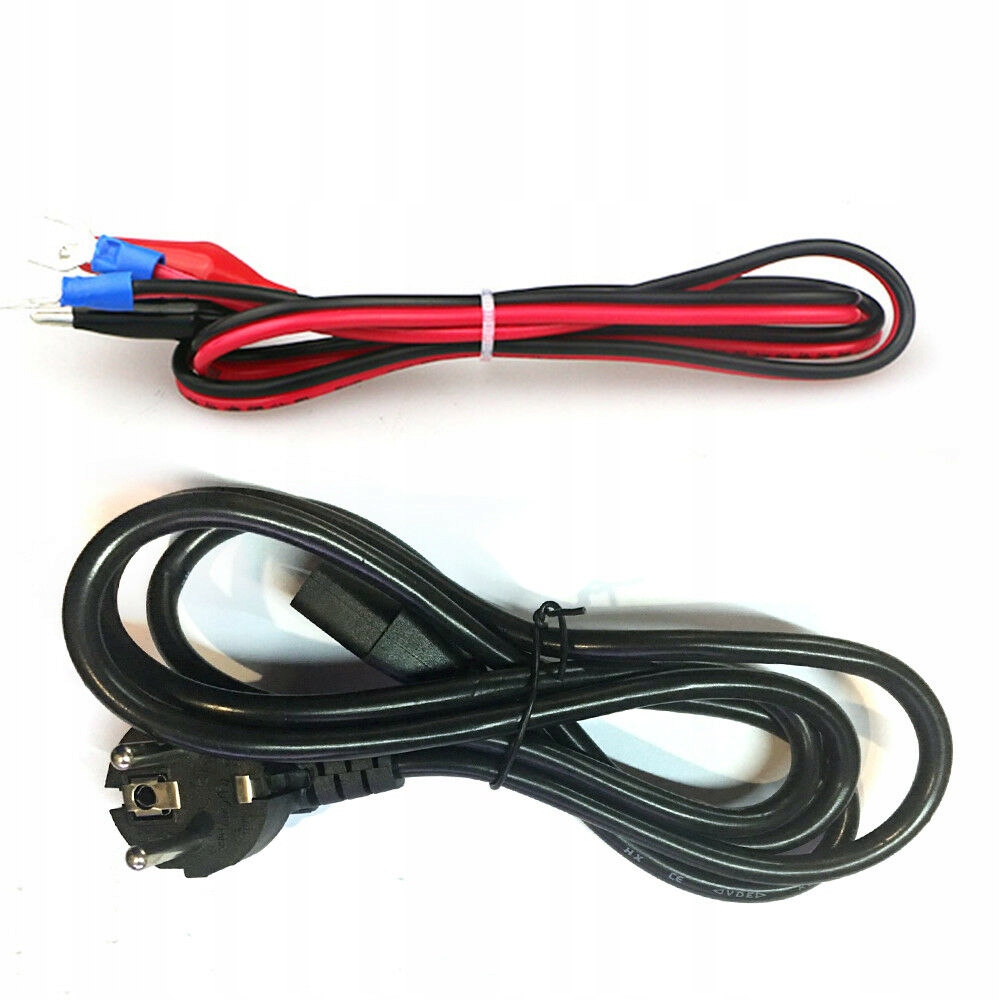

1 * шнур питания

1 * output line

1 * руководство
