Микрокомпьютер Arduino Mini, A000088, ATmega328,
В наличии
Артикул
16730887312
1 475,00 грн.

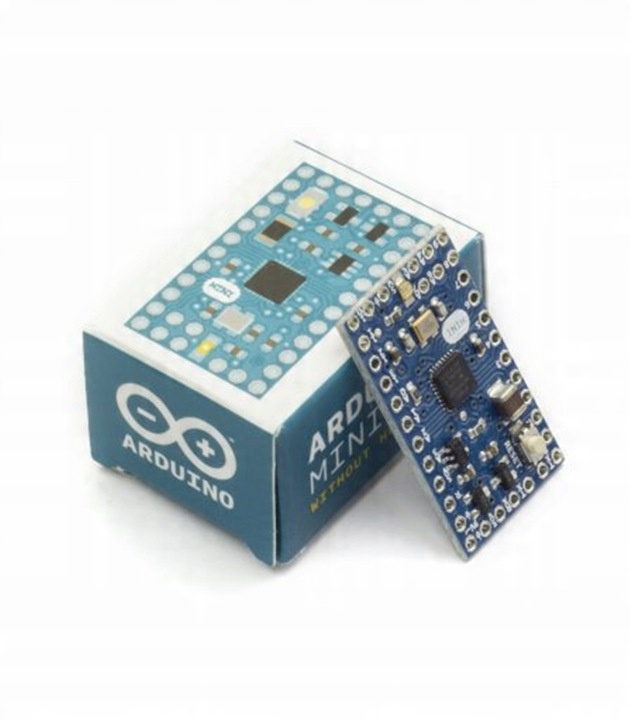

Arduino Mini 05 Without Headers, Avr ATmega328, 5V, 16mhz, 32KB Flash, a000088
The Arduino Mini is a small microcontroller board intended for use on breadboards and when space is at a premium. The revision 05 has a new package for the ATmega328, which enables all components to be on the top of the board. It also has an onboard reset button. The 05 version has the же PIN configuration as revision 04.
Additional features coming with the 05 version are: - new PCB layout and design-onboard reset button
The Arduino Mini has 14 digital input / output pins (of which 6 can be used as PWM outputs), 8 analog inputs, and a 16 MHz crystal oscillator. Он может быть запрограммирован с последовательным адаптером USB или другим USB или RS232 для последовательного адаптера TTL.
технические характеристики
микроконтроллер ATmega328
Operating Voltage 5V
Input Voltage (recommended) 7-9 V
Digital Input Pins 14
Analog Input Pins 8
DC Current per Input Pin 40 мА
Flash Memory 32 Кб
Flash Memory for bootloader 2 Кб
SRAM 2 кб
EEPROM 1 Кб
Clock Speed 16 МГц
length 30 мм
width 18 мм
