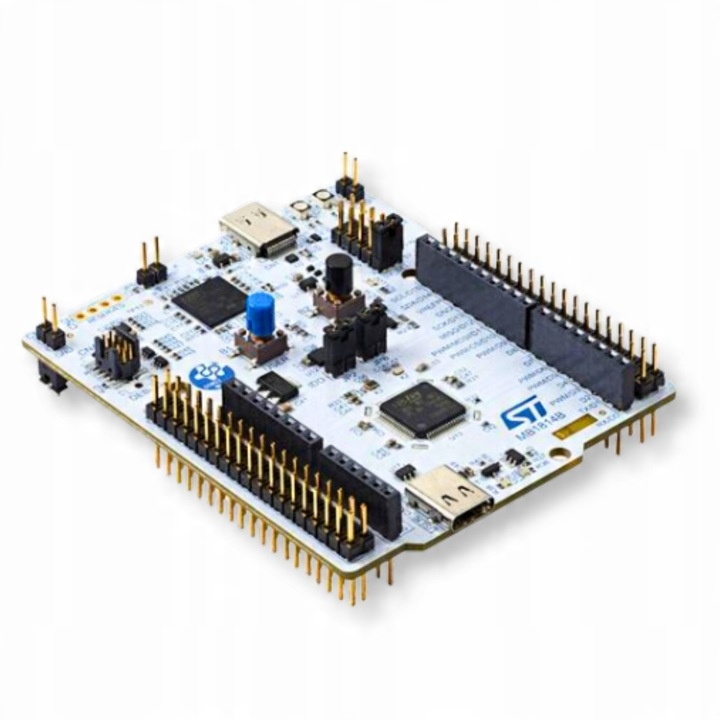

STM32 Nucleo-H503RB Starter Kit STM32H503RBT6 ARM CORTEX-M33 NUCLEO-64

NUCLEO-H503RB is an evaluation kit from ST Microelectronics, equipped with a microcontroller STM32H503RBT6. This microcontroller is based on the 32-bit core ARM Cortex-M4 , which reaches a maximum clock speed of up to170 MHz . It includes 512 KB of Flash memory and 112 KB of SRAM memory, as well as built-in accelerators of mathematical and arithmetic functions that increase computational efficiency. Серия STM32 Nucleo-64, в которой этот комплект входит, предлагает системы в 64-контактных пакетах. У комплекта есть два разъема расширения: они совместимы с Arduino Uno R3 и с другими ST Morpho, которые позволяют вам легко добавлять модули и расширения.

Set Specifications:

1. Microcontroller: STM32H503RBT6 in lqfp64 housing, providing advanced computing capabilities.
2. Controls and signalling elements:

   1 X LED user: For visual signaling of program operation.

   кнопки: 1 x пользовательская кнопка и 1 X кнопка сброса, позволяющая взаимодействовать с устройством.

3. кварцевый генератор:

   LSE: With a frequency of 32,768 кГц, used for precise timing.

4. Connectors on board:

   ST Zio: Includes connector compatible with ARDUINO® Uno V3.

   ST Morpho: позволяет вам легко расширить функциональность набора.

5. Power options:

   Flexible Power sources: via USB VBUS from ST-LINK, directly from the USB connector, or from an external power supply (3.3 V, 5 V, 7-12 V).

6. Programmer/Debugger:

   STLINK-V3EC: Integrated programmer / debugger with SWD interface, which can also work with external systems, increasing the diagnostic and software capabilities of the kit.

The NUCLEO-H503RB kit is ideal for designers and developers who need flexibility in system expansion and efficient work with advanced STM32 microcontrollers.
