предметом аукціону є

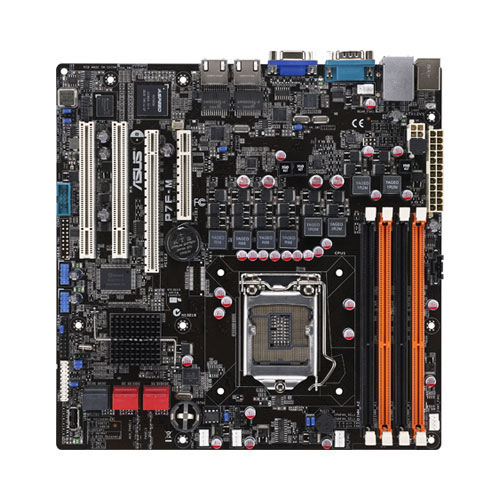

ASUS P7F-m
Ми пропонуємо ту ж плату,що і на картинці ,упаковка oem
стан ідеальний,як новий - більшість з них-шезлонги ASUS
Гарантія 3 місяці з моменту відвантаження
Paragon, FV 23%
.
- Процесор / системна Шина
1 x Socket 1156
Quad/Dual Core Intel Xeon 3400 series Server Processor
Quad Core Intel Core i7-800 series Desktop Processor★
Quad/Dual Core Intel Core i5/ i3 series Desktop Processor★
- Чіпсет
PCH Intel 3420
- Форм-Фактор
MicroATX
9.6" x 9.6"
- Аксесуари для ASUS
Rack Ready (Rack and П'єдестал dual use)
ASWM2.0
FAN speed control
- Пам'ять
Total Slots: 4 (2-channel) (Desktop processors and Xeon L3406 don't support RDIMM)
Ємність: Maximum up to 32GB (RDIMM); Maximum up to 16GB (UDIMM )
Memory Type: DDR3 1066/1333 ECC UDIMM; DDR3 800/1066/1333 RDIMM (Refer to for detail memory AVL & non-ECC UDIMM vs CPU support list)
Memory Size: 1 ГБ, 2 ГБ до 4 ГБ, 8 ГБ (RDIMM)/ 1 ГБ, 2 гб, 4 гб (UDIMM)
- Expansion Slots (follow SSI Location #)
Total PCI/PCI-X/PCI-E Slots: 4
Slot Location 4: 1 * PCI 32bit/33 MHz
Slot Location 5: 1 * PCI 32bit/33 MHz
Slot Location 6: 1 * PCI-E x16 (x16 link)
Slot Location 7: 1 * PCI-E x8 (x4 link)
- Сховище даних
SATA Controller:
Intel® 3420:
6* SATA2 300 МБ/s ports -
Intel Matrix Storage utility supports software RAID 0, 1, 10 & 5(Windows)
LSI MegaRAID driver supports software RAID 0, 1& 10(Windows & Linux)
- Підключення до мережі
LAN: 2 * Intel 82574L + 1 * Mgmt LAN
- Графіка
VGA: Aspeed AST2050 8MB
- Роз'єми на материнській
1 x PSU Connector 24-pin ATX power connector + 8-pin ATX 12V power connector
3 x USB Connectors (support 5 USB ports) (One for internal Type A USB connector )
1 x Fan Header 5* 4pin
1 x SMBus
1 x Chassis Intruder
1x Serial Port Header
- Роз'єми на задній панелі I/O
1 x External Serial Port
2 x External USB Port
1 x VGA Port
2 x RJ-45
1 x PS/2 KB/Mouse
- програмне Забезпечення управління
Software: ASWM2.0
Out of Band Remote Management: Optional ASMB4-iKVM for KVM-over-Internet
- Моніторинг
CPU Temperature
FAN RPM
- EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Австралія (C-TICK)
- Середа
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)
