ASUS
P7F-x

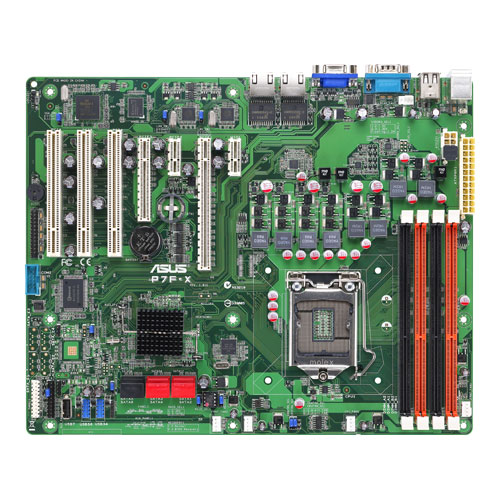

Ми продаємо ту ж плату ,що і на картинці, упаковка oem
підтримка пам'яті, наведена в таблиці - 2 зображення
FV 23%
.
.
.
.
- Processor / System Bus
1 x Socket 1156
Quad/Dual Core Intel Xeon 3400 series Server Processor
Quad Core Intel Core i7-800 series Desktop Processor★
Quad/Dual Core Intel Core i5/ i3 series Desktop Processor★
★Refer to or CPU Support List
- Core Logic
PCH Intel 3420
- Форм-Фактор
ATX
12" x 9.6"
- ASUS Features
Rack Ready (Rack and П'єдестал dual use)
ASWM2.0
FAN speed control
- Memory
Total Slots: 4 (2-channel)
Ємність: Maximum up to 16GB (UDIMM)
Memory Type: DDR3 1066/1333 ECC UDIMM (Refer to asus for detail memory AVL & non-ECC UDIMM vs CPU support list)
Memory Size: 1 ГБ, 2 ГБ 4 ГБ (UDIMM)
- Expansion Slots (follow SSI Location #)
Total PCI/PCI-X/PCI-E Slots: 6
Slot Location 1: 1 * PCI 32bit/33 MHz
Slot Location 2: 1 * PCI 32bit/33 MHz
Slot Location 3: 1 * PCI 32bit/33 MHz
Slot Location 4: 1 * PCI-E x8 (x4 link)
Slot Location 5: 1 * PCI-E x1 (x1 link)
Slot Location 6: 1 * PCI-E x16 (x16 link)
Slot Location 7: 1 * MIO Slot for Audio card (PCI-E x1 is not supported)
- Storage
SATA Controller:
Intel® 3420:
6 * SATA2 300 МБ/s ports -
Intel Matrix Storage utility supports software RAID 0, 1, 10 & 5(Windows)
- Networking
LAN: 2 * Marvell® 8056 PCI-E GbE LAN
- Graphic
VGA: XGI® Z9s DDR2 64MB
- Onboard I/O Connectors
1 x PSU Connector 24-pin ATX power connector + 8-pin ATX 12V power connector※
3 x USB Connectors (support 5 USB ports) (One for internal Type A USB connector )
5 x Fan Header 4pin
1 x SMBus
1 x Chassis Intruder
1x Serial Port Header
1 x Print Line Terminal
- Rear I/O Connectors
1 x External Serial Port
2 x External USB Port
1 x VGA Port
2 x RJ-45
1 x PS/2 KB/Mouse
- Management Solution
Software: ASWM2.0
- Monitoring
CPU Temperature
FAN RPM
- EMI
US (FCC, CFR47 Part 15, Class B)
Europe (CE, EN55022 & EN55024)
Австралія (C-TICK)
- Environment
Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% (Non condensing)
