Модуль бездротового зв'язку IRDA RS232 з 9-портовим інтерфейсом

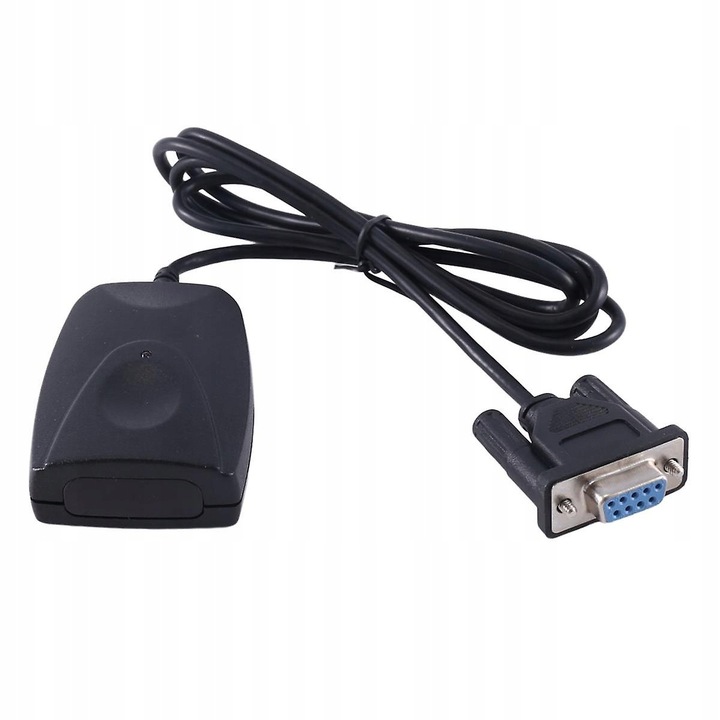

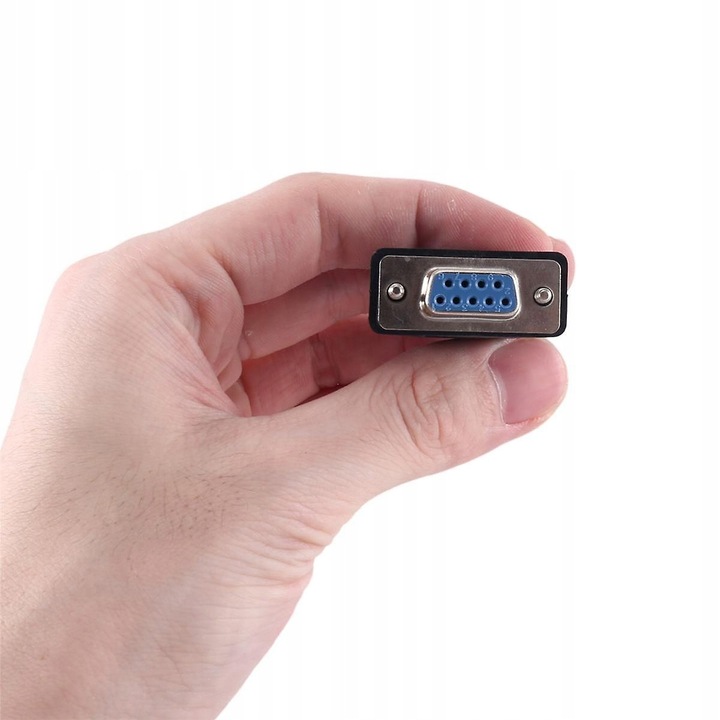

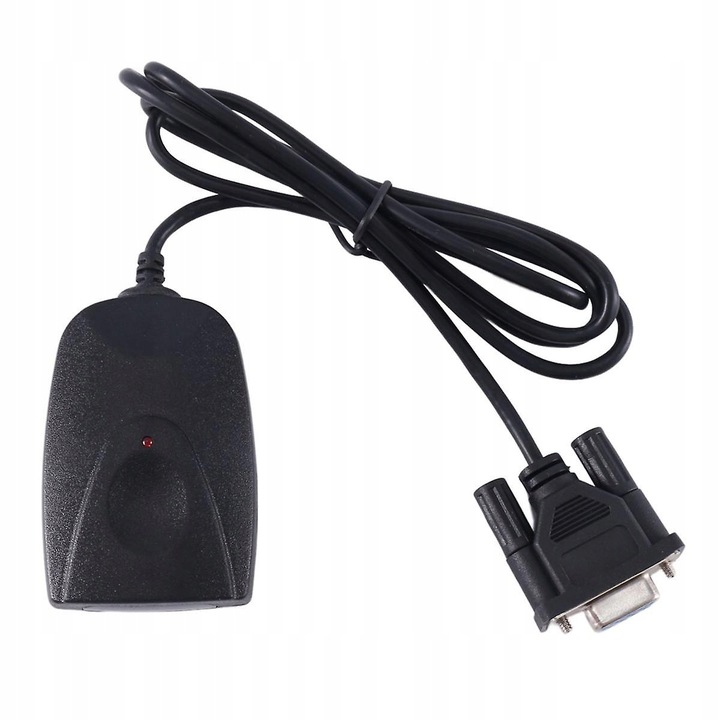

IR220 is a RS232 to RAW IR (IrPHY Only) адаптер, it can convert RS232 data to infrared, no need to install driver. It features a RS232 serial Cable replacement on PC or embedded system.There are 7 different default baud rates, 9600 baud rate by default, you can revise by yourself. Коли 10шт або вище, ви можете попросити встановити баутрейт, який ви хочете.Deriving power from DTR and of standard RS232 interface, user must enable DTR and before using it, or connect DTR / pin to 3.7 V~12V external DC directly.The default baud rate of IR220 IR adapter is 9600bps, IRXON can also supply adapters with the default baud rate at 2400, 4800, 19200, 38400, 57600 or 115200 .Там є червоний світлодіод на верхньому центрі корпусу адаптера, світлодіодний індикатор активності інфрачервоного сигналу.Connection: DB9-F RS232 Serial COM PortDefault baud rate: 9600 Default baudrate options: 2400/4800/19200/38400/57600/115200 відстань зв'язку:1 становить 100 см. (15optical cone angle)Size and weight: 2.8 inch L x 1.63 inch W x 0.68 inch H ( 67 x 46 x 19 мм) , 2.44 oz (73G)RS232 cable length: 1.2 MPOWER source: from DTR and pin of DB9 RS232 port power consumption: 0.3 woperating temperature: -10 до 60model number: ir220 Infrared adaptersupport: 98SE/ME/2000/xpcolor:as shownmaterial:PLASTICPACKAGE Contents:1 x Ir220 RS232 serial port ir adapteronly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is + / - 1-3 см.
