"Pcm5100 + MS8416 USB аудіо

DC 12V оптичний коаксіальний USB вхід HiFi аудіо Board Module

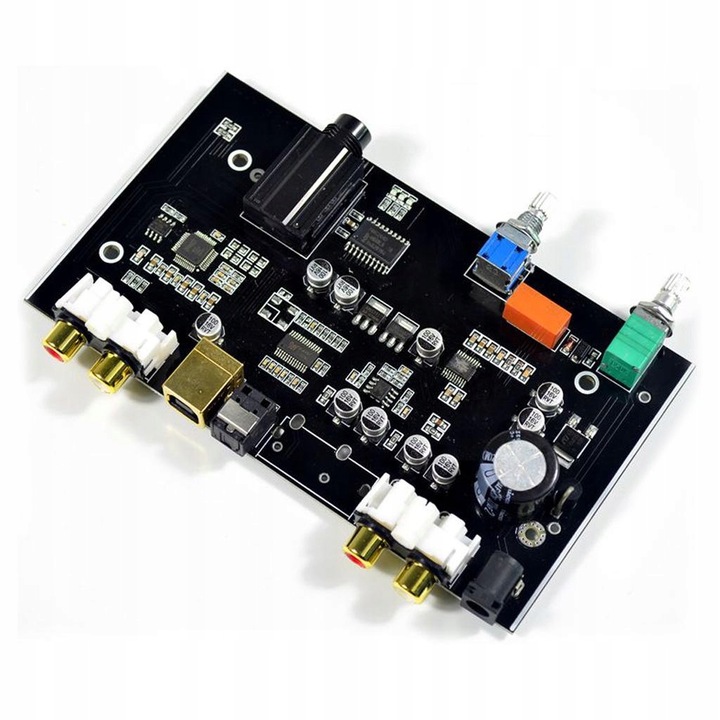

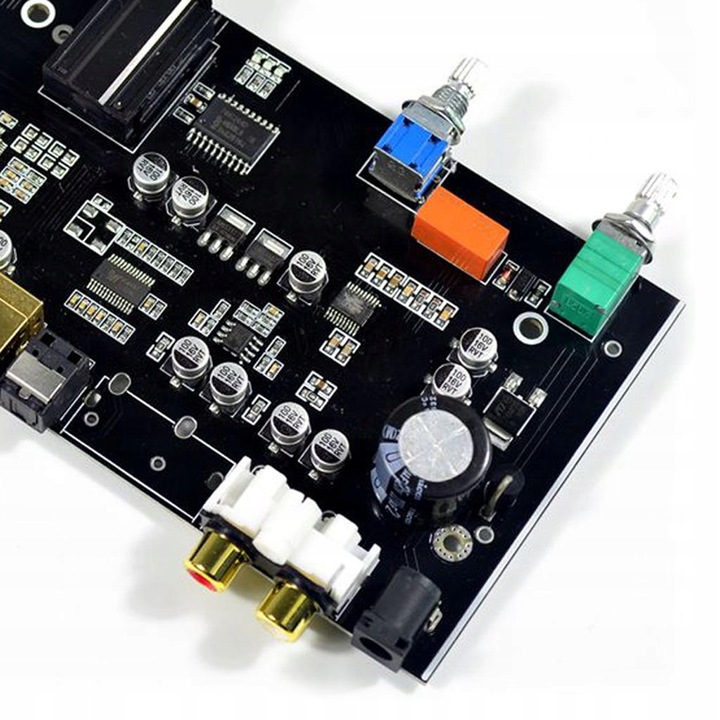

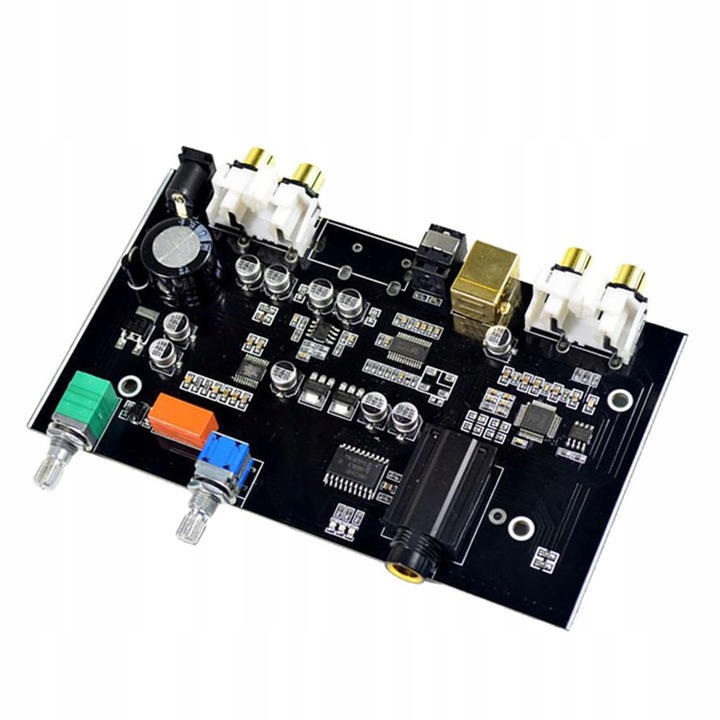

Description:

The HiFi audio decoding board adopts PCM5100 and MS8416, USB uses custom decoding chip, op amp NE5532.

The uses a five-metal, and the main circuit uses a five-metal film with an accuracy of ±1% to ensure a good signal-noise ratio.

Coupling adopts chip inlet, main filter electrolytic capacity is 2200uf / 25V, ensuring strong and continuous .

uses 1.6 mm thick double-sided sheet, 2.0 oz copper thickness, spray tin full process, для забезпечення хорошої проходить продуктивності великого і малого струму. Якість першого класу.

Coaxial input support - 96KHz, optical input support-96KHz, USB support-48KHz (computer does not need to install driver).

Specification:

size: 144x83mm

Voltage: DC 12V

Input: Optical Fiber Input; USB Input; L / R Channel Analog Signal Input

Output: 6.5 mm Headphone Output; L / R Channel Audio Output

Package Includes:

1 Piece Audio Board
