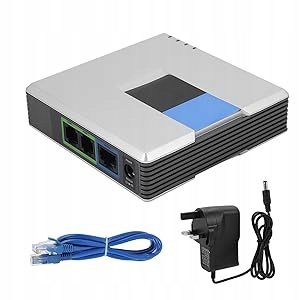

About this item Support SIP V2 protocol. Легкий і портативний. Phone Adapter with 2 Ports for Voice-over-IP. Internet phone adapter-With it, you can easily achieve long distance calls or free global calls along with broadband network, router, orinary telephone.(Broadband network router ordinary telephone = save domestic or international long dis Comes with a network cable.
Product Description
Features
Internet Phone adapter - With it, you can easily achieve long distance calls or free global calls along with broadband network, router, orinary telephone.(Broadband network router Gateway ordinary telephone = save domestic or international long distance calls or free global calls.) Phone Adapter with 2 Ports for Voice-over-IP.Support SIP V2 protocol.Comes with a network cable.Легкий і портативний.
Specification
Type: VoIPBrand: For LinksysModel: PAP2T-на PAP2TDHCP: SupportSIP v2 protocol: SupportSupport fax and multi-voice compression G. 711, G. 726, G. 729, G. 723. 1 Easily complete configuration Access encryption through a automate firmware upgradesStandard: IEEE 802.3, IEEE 802.3 uPort: 1 10/100 M RJ-45 network interface, 2 Standard Telephone interfaces, 1 Power Interface
Cable Type: RJ45 Category 5 Twisted pair; RJ11 Standard Telephone Linebase Indicator: Power, Ethernet, Telephone (1-2)Network Protocol: SIP v2security features: Key managementweight: approx. 280gpackage list
1 * VoIP
1 * Адаптер живлення
1 * User Manual< / P >
1 * Network Cable

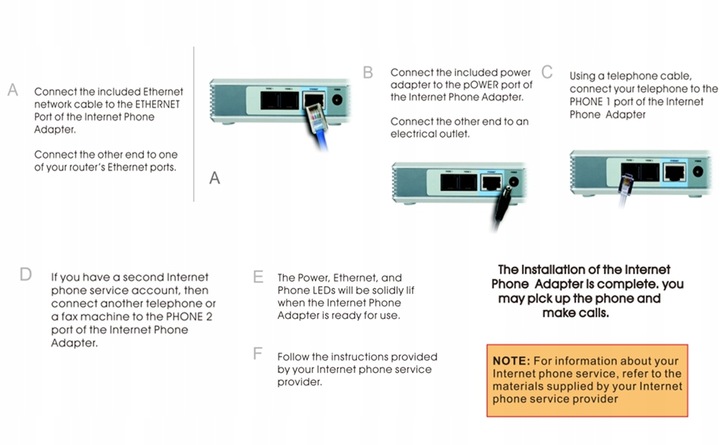

Setup Steps
user Instruction:
Broadband network router Gateway ordinary telephone = save domestic or international long distance calls or free Global Calls.Broadband network router Gateway telephone Programme-controlled switch ordinary telephone = save domestic or international long-distance calls or free global calls.For Cisco Dual Port Gateway has a fax feature. Підтримка протоколу SIP
VoIP Setup Manual:
підключіть пристрій PAP2 до маршрутизатора за допомогою мережевого кабелю. Телефон також підключений до пристрою PAP2 і підключений до джерела живлення.After the PAP2 device is started, press the phone 's: * * * * (four" * " keys) until the phone announces in English. Then, press: 110#, the phone will report the address assigned by the PAP2 device on the router. За курсом, адреса присвоюється кожному пристрою по-різному, і оплачується увага до телефону. For example, the IP address assigned by PAP2 on the router is: 192.168.1.102. Відкрийте IE and enter 192.168.1.102 in the address. The following interface will appear.Then, find the administrative entry, admin login. Натисніть ліву кнопку, щоб знайти наступний інтерфейс. Set Up the Line 1 phone (line 2 is the second phone, corresponding to phone 1 and phone 2 on the device, the second phone is set up the же way as the first phone), fill in the icon, Fill in the server's IP address (this is provided by the VoIP service provider). Fill in your account number and password. Найважливішим кроком є збереження налаштувань, тоді VoIP is all set.
