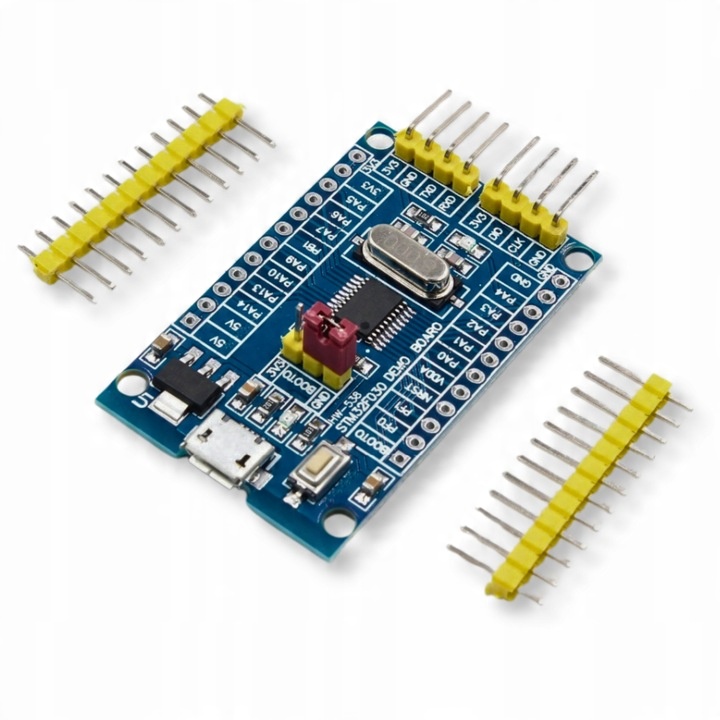

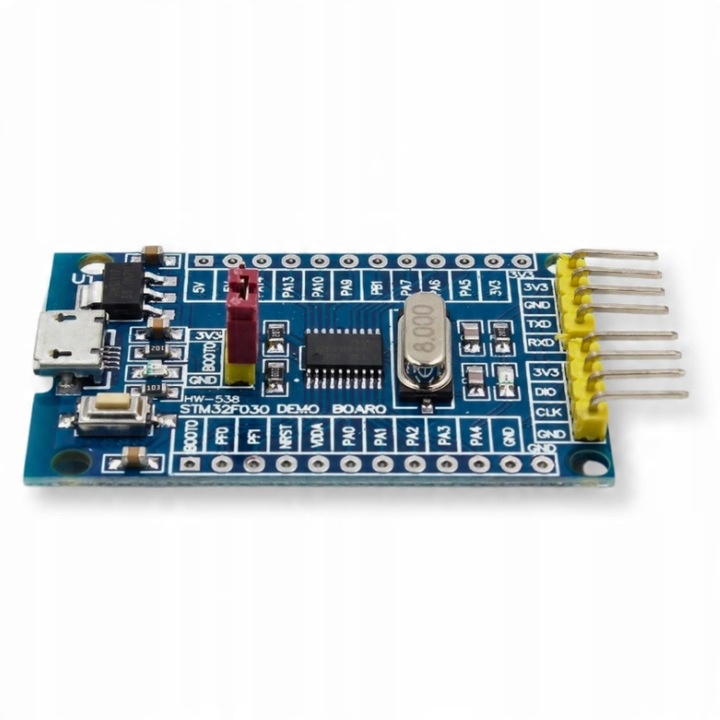

Black Pill ARM Cortex-M0 Stm32f030f4p6 Development Board 48mhz 16KB Flash

Black Pill ARM Cortex-M0 STM32F030F4P6 48 МГц 16kb Flash Development Board

the development board uses a 32-bit microcontroller STM32F030F4P6 with A core ARM Cortex M0, clocked 48 MHz , equipped with 16 kB Flash memory and 4 kB SRAM memory. It is equipped with a 12-bit ADC converter, various timers and communication interfaces such as I2C, SPI and USART, which allows easy integration with contact plates in projects. The module can be programmed using Arduino IDE or other popularIDE environments. For programming you will need a st-Link programmer, available in our offer.

- Inner mesh panties

• Microcontroller: STM32F030F4P6
• Core: ARM Cortex-M0
• годинник: до 48 МГц
• SRAM Memory: 16 кб
• Flash Memory: 4 КБ
• Communication interfaces: SPI (x1), I2C (x1), USART (X1)
• 1 x A/C Converter: 11-Channel
• RTC clock with calendar
• 5 x Timer
• the system is powered by voltage from 2,4 V to 3,6 V
• Dimensions: 47 x 30,5 mm
